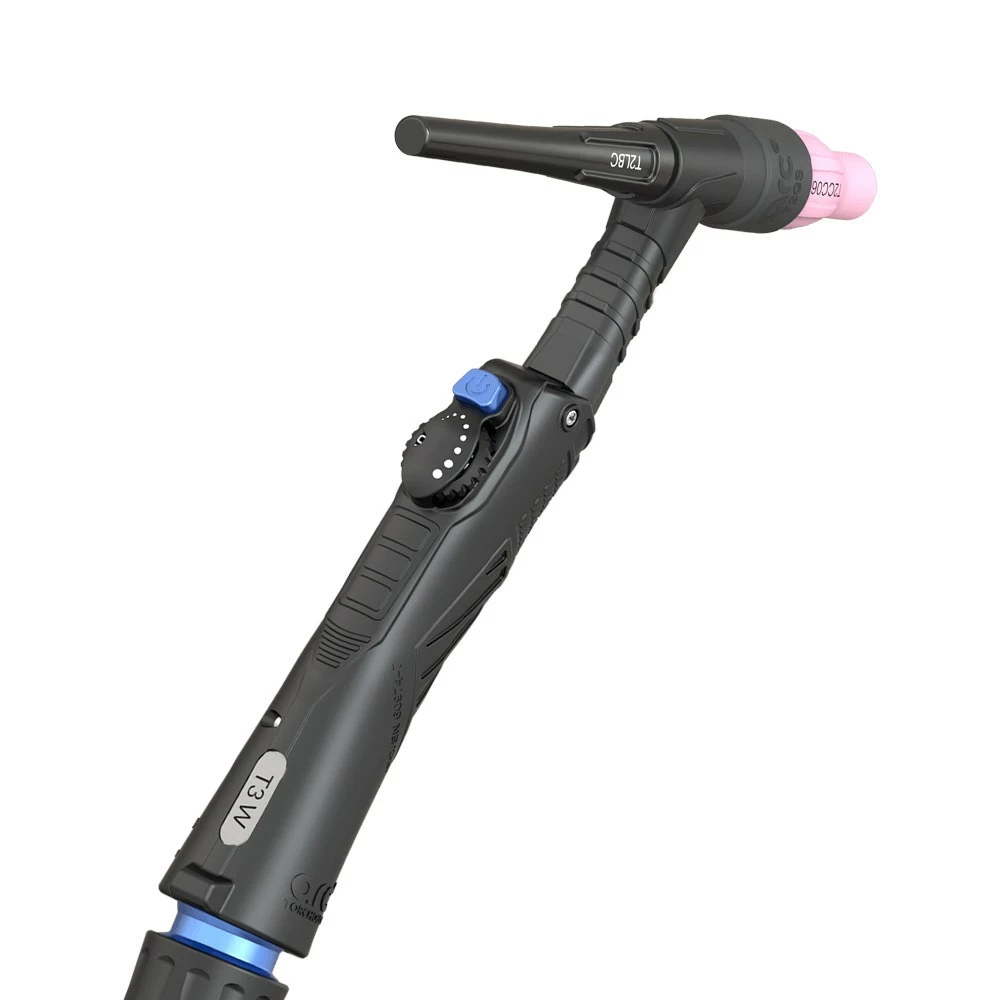

UNIMIG 8m ARC TORCHOLOGY? T3 TIG Torch UMT3F8M

The ARC TORCHOLOGY® T3 TIG Torch has been designed for maximum performance and longer consumable lifecycles. Thanks to exclusive torch technologies, this torch boasts a 30% better power to weight ratio compared to standard UNIMIG torches – more power in a lightweight body! The T3 TIG Torch also comes with a flex-neck torch head as standard, perfect for TIG welding in tighter and restrictive environments.

FORCE COOL™ Technology- A highly effective series of passages and wells force cool the collet, maximising conductivity and extending consumable life.

HEAT ZONE ISOLATION™ Technology – Transferred heat from the ceramic cup is isolated by a unique external barrier resulting in cooler running torches with increased power to weight performance ratios.

Tungsten Release System™ – Trouble free extension of the electrode with a 180° twist of the back cap. There is no need to remove any other wear parts to extend the electrode.

FLEX-NECK Torch Head – ARC TORCHOLOGY® Torches come with a flexible torch head as standard. Simply bend your torch head into any angle you need, allowing you to access tight and cramped spaces.

Specifications

• Cooling Method: Air Cooled
• Duty Cycle – DC: 35% @ 240A
• Duty Cycle – AC: 35% @ 170A
• Length (m): 8
• Dinse Size: 35/50
• Electrode Size: 1.0-4.0mm
• Standard: EN60974-7
