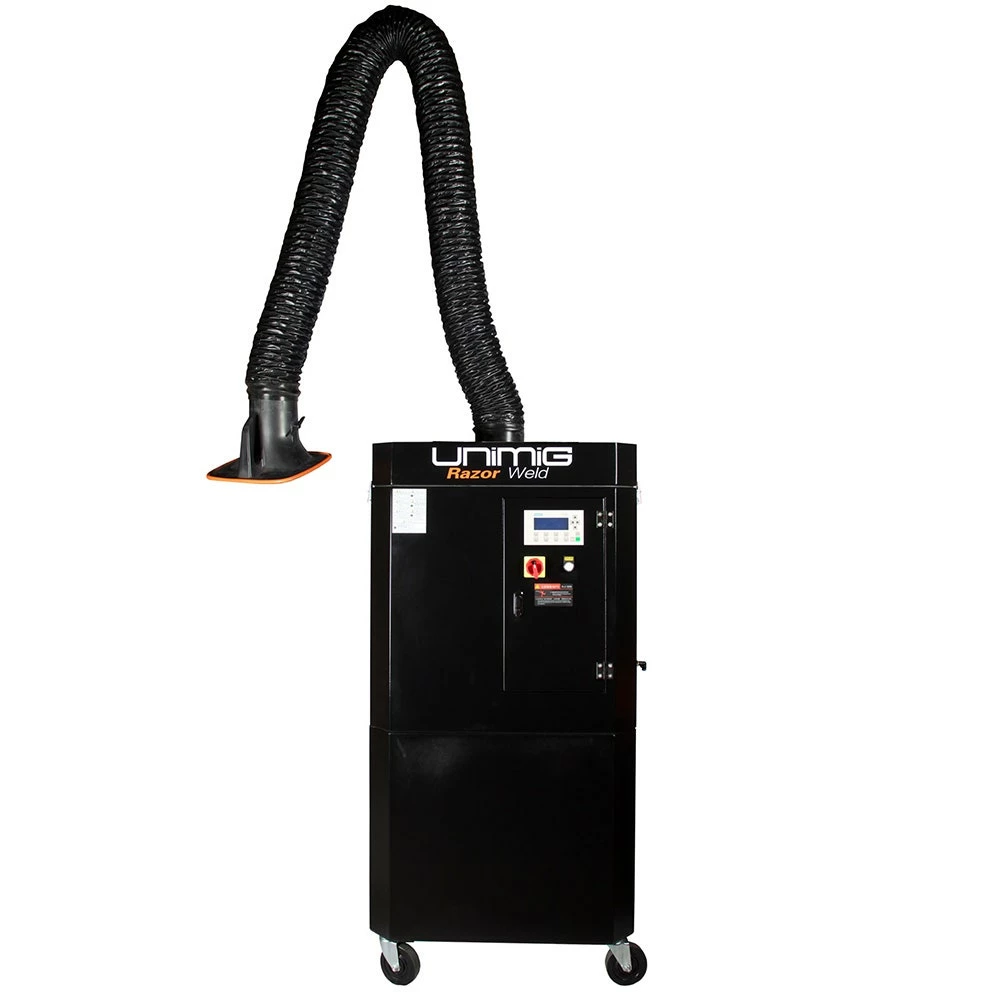

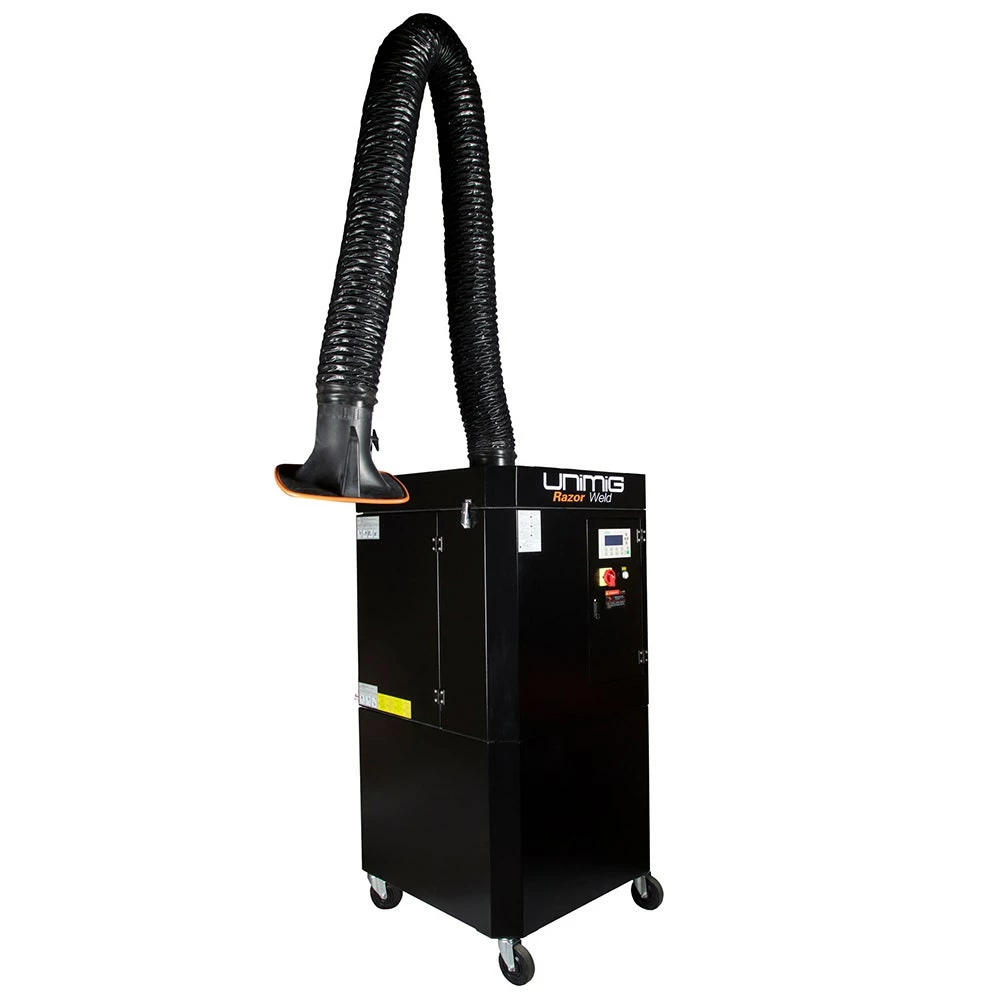

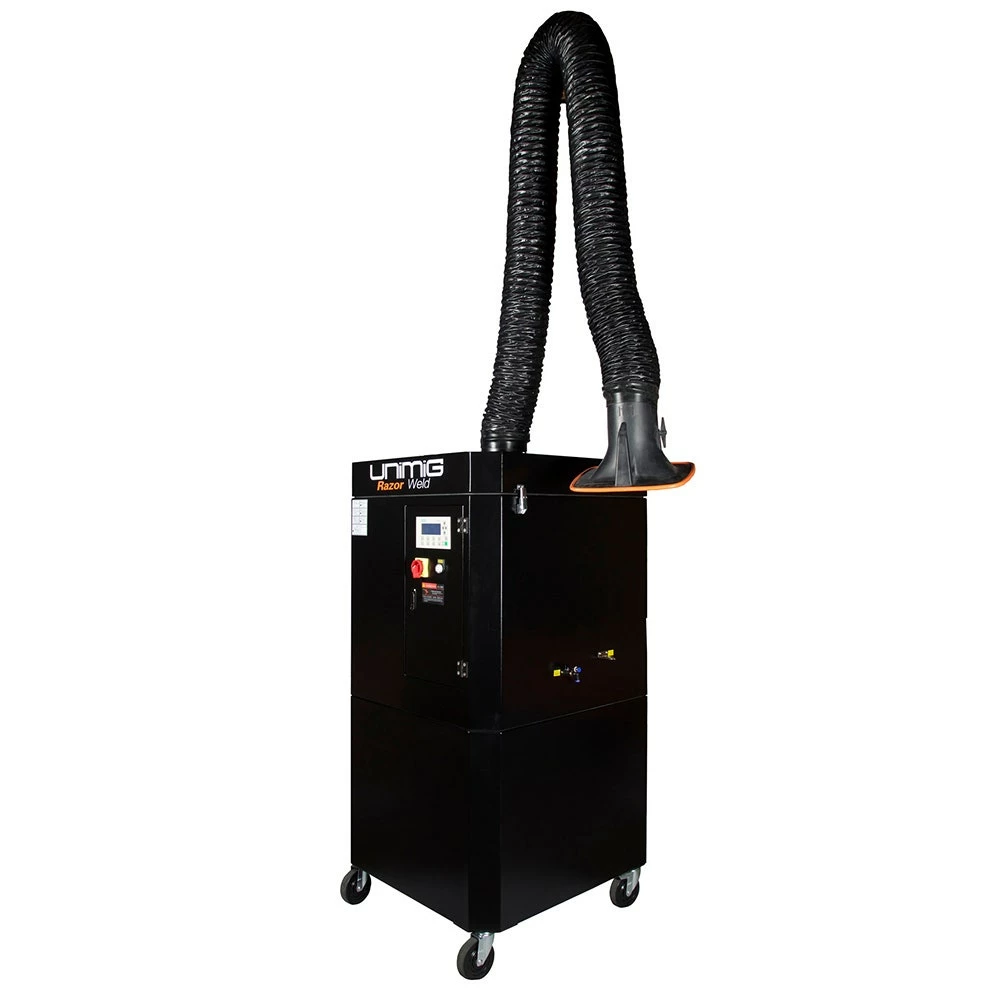

UNIMIG 1.5Kw 50Hz KSZ-1.5S Mobile Single-Arm Fume Extractor KSZ1.5S

The KSZ-1.5S Fume Extractor is a mobile single-arm 415-volt fume extraction unit capable of filtering an area of up to 10 square metres. The unit is fitted with a Programmable Logic Controller (PLC) allowing customisation of specific operations of time / duration. The PLC, combined with a pressure differentiation switch, displays a red warning light indicating when the filter must be cleaned or replaced. The unit is constructed from high quality sheet metal and is easily manoeuvrable thanks to its four heavy duty lockable caster wheels.

This machine is suited for the purification of fumes and dust generated by welding and grinding. The suction arm rotates 360 degrees by pulling the handle on the hood to the desired work area.

Our filters have been independently tested to ISO:EN779:2012 and can remove greater than 99.8% of nanoparticles (PM1 particulate matter), high enough filtration to meet indoor emission standards. The filtered air is discharged through the air vents at the bottom of the fume extractor.

This machine is self-cleaning with an automatic reverse blowing function.

• Customisable programs
• Filters area up to 10 square metres
• Portable
• Removes 99.8% nanoparticles (PM1 particulate matter)

Specifications

• Air Volume: 3000 ± 100m3/h
• Air Suction Arm: 1500m3/h
• Motor Power: 1.5kW
• Working Voltage: 415V/50Hz 3 Phase
• Filtering Area: 10m2
• Cleaning Way: Automatic Reverse Blowing
• Maximum Pressure: 2800Pa
• Compressed Air: 0.5 – 0.6MPa
• Filtration Efficiency: >99.8%
• Noise Level: <72 ± 5dB(A)
