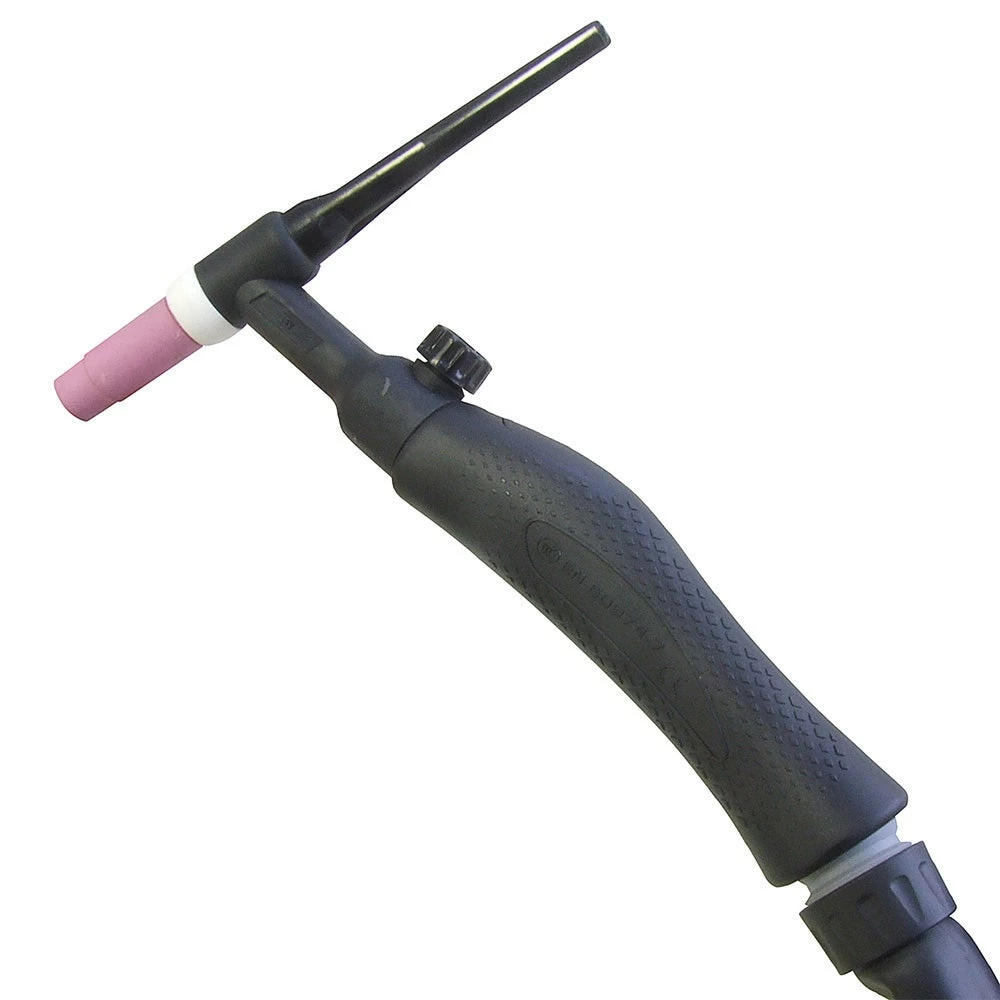

UNIMIG 4m 26V TIG Torch 26V-4MCP50

The 26V TIG Torch has been engineered for trouble-free and superior performance during DC Lift Arc TIG welding. The ergonomically designed handle includes soft grips and knuckle joints. Rubber cable materials guarantee optimal cable performance, whilst the shielded switch leads ensure minimal tracking and maximum machine protection. This torch is also ‘flex-head’ compatible.

Ergonomic Handle – Like an extension of your hand, the ergonomically designed handle includes soft grips, knuckle joints and a screwless, interchangeable switch.

Advanced Cable System – UNIMIG’s advanced cable system features rubber cable materials to guarantee the best performance. Switch leads are shielded as standard to ensure minimal tracking and maximum machine protection. Positioning of the torch is made easier through the combination of knuckle joints and a flexible leather section that covers the first metre of the torch behind the handle.

Specifications

• Cooling Method: Air Cooled
• Duty Cycle – DC: 35% @ 180A
• Duty Cycle – AC: 35% @ 125A
• Length (m): 4
• Dinse Size: 35/50
• Electrode Size: 1.0-4.0mm
• Standard: EN60974-7
