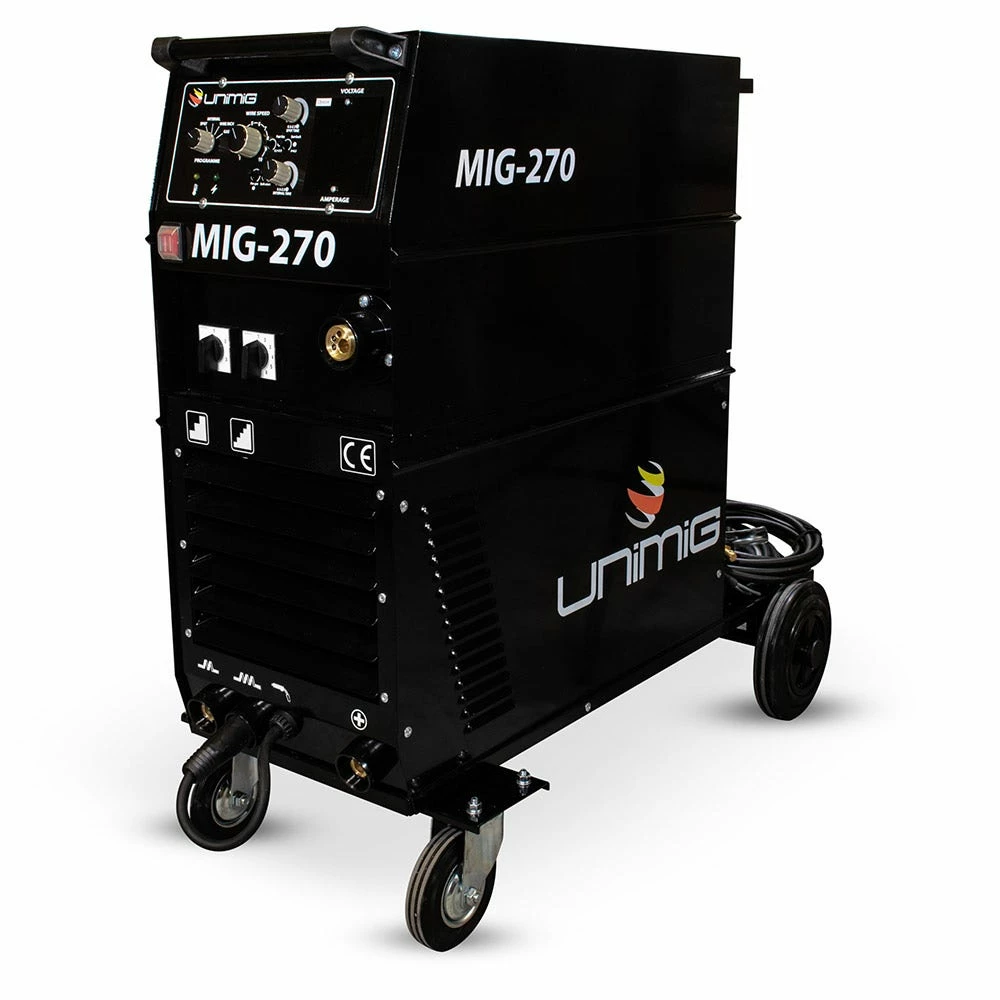

UNIMIG 270A WORKSHOP 270 MIG Welder KUM270

The WORKSHOP 270 Compact MIG Welder combines immense power with ultra-smooth arc characteristics. It has been designed for users who need a welder to do medium to heavy fabrication, as well as rural applications. It features 21 position switching, giving you the freedom to precisely dial in your welding settings, and a four geared roller drive unit for consistent smooth wire feeding. The high-quality copper-wound transformer with large cooling fans and motors maximises cooling and machine reliability.

Built to Last – Designed and manufactured with the best quality components for increased durability and reliability. Workshop series machines feature Copper wound transformer and smoothing choke, large 250mm cooling fan with enclosed motor, to maximise cooling for high duty cycle operation.

Voltage Steps – 21 position switching, allows precise setting in small increments of welding voltage so the operator can achieve the correct weld penetration.

Four Geared Wire Drive – This machine features a four geared roller drive unit, providing the most consistent and smoothest wire feed. This also assists with using longer MIG Torches.

Specifications

• Machine Specifications
  • Primary Input Voltage: 240V Single Phase
  • Supply Plug: No plug supplied (32 AMP Recommended)
  • Rated Input Power (kVA): 11.0
  • Rated Output: 30-250A
  • Protection Class: IP21
  • Insulation Class: I
  • Minimum Generator (kVA): 13.0
  • Dinse Connector: 35/50
  • Standard: AS/NZ60974-1
  • Suitable Material: Mild Steel, Aluminium, Stainless Steel
• MIG Specifications
  • MIG Welding Current Range: 30-250A
  • MIG Duty Cycle @ 40°C: 70% @ 250A
  • MIG Wire Size Range: 0.6-1.2mm
  • MIG Wire Spool Size: 5kg/15kg
  • MIG Welding Thickness Range: 1-16mm
  • Drive Roller Size: 40/32 (x2)
