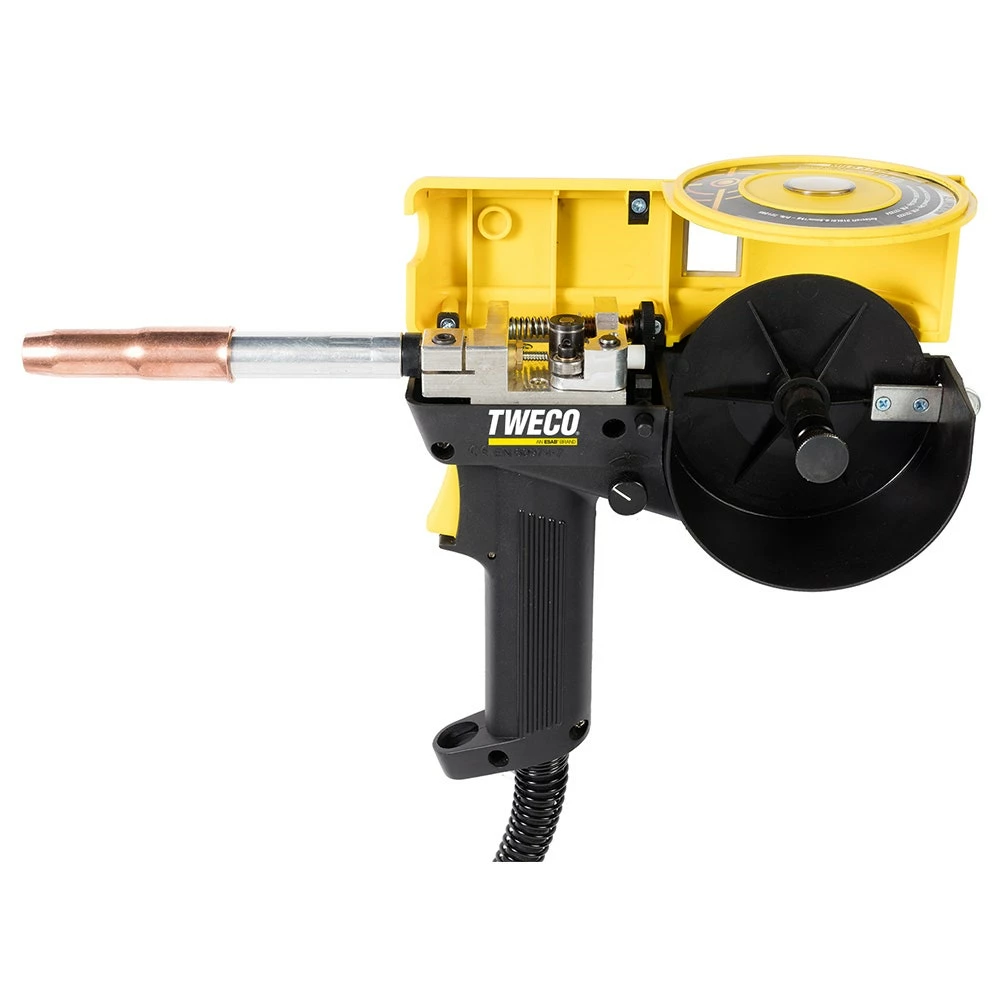

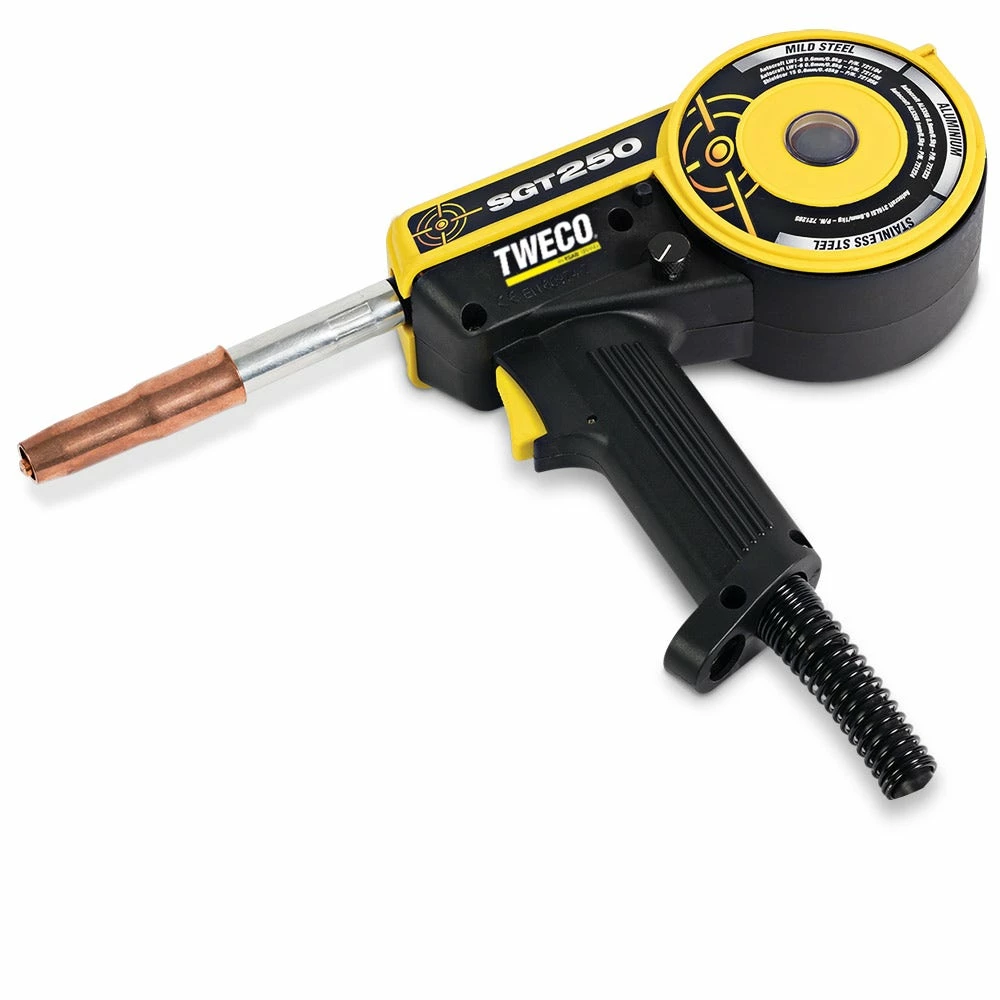

CIGWELD Tweco SGT250 Spool Gun W4011250

The Tweco SGT250 is a comfortable pistol grip spool gun that has the cable connected from the handle for a well-balanced, light weight feel in the hand and easy manoeuvrability for precision welding.

With a powerful 250Amp @20% duty cycle (Argon) and high wire feed speed you can be assured you’ll achieve a high conductivity rate that can easily melt through the aluminium oxide to ensure exceptional fusion results. Additionally, the wire feed control knob gives you ultimate control in the hand and a 6m lead allows you flexibility with distance to the work piece.

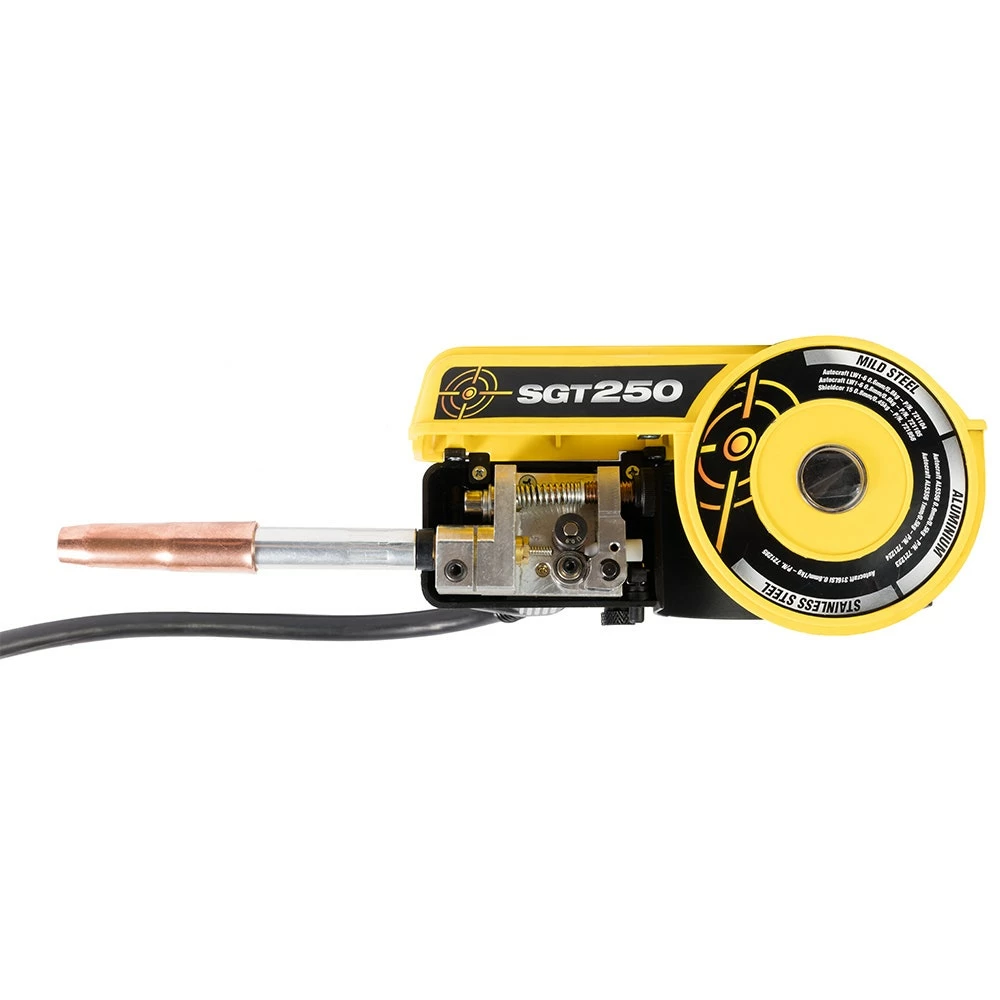

The SGT250 has adjustable pressure roll and spool roll tensions, a wire feed viewing window and an easy access flip top cover ensuring all the adjustments you need are at your fingertips.

• Ideal for Aluminium applications
• Ensures smooth feedability of soft wires

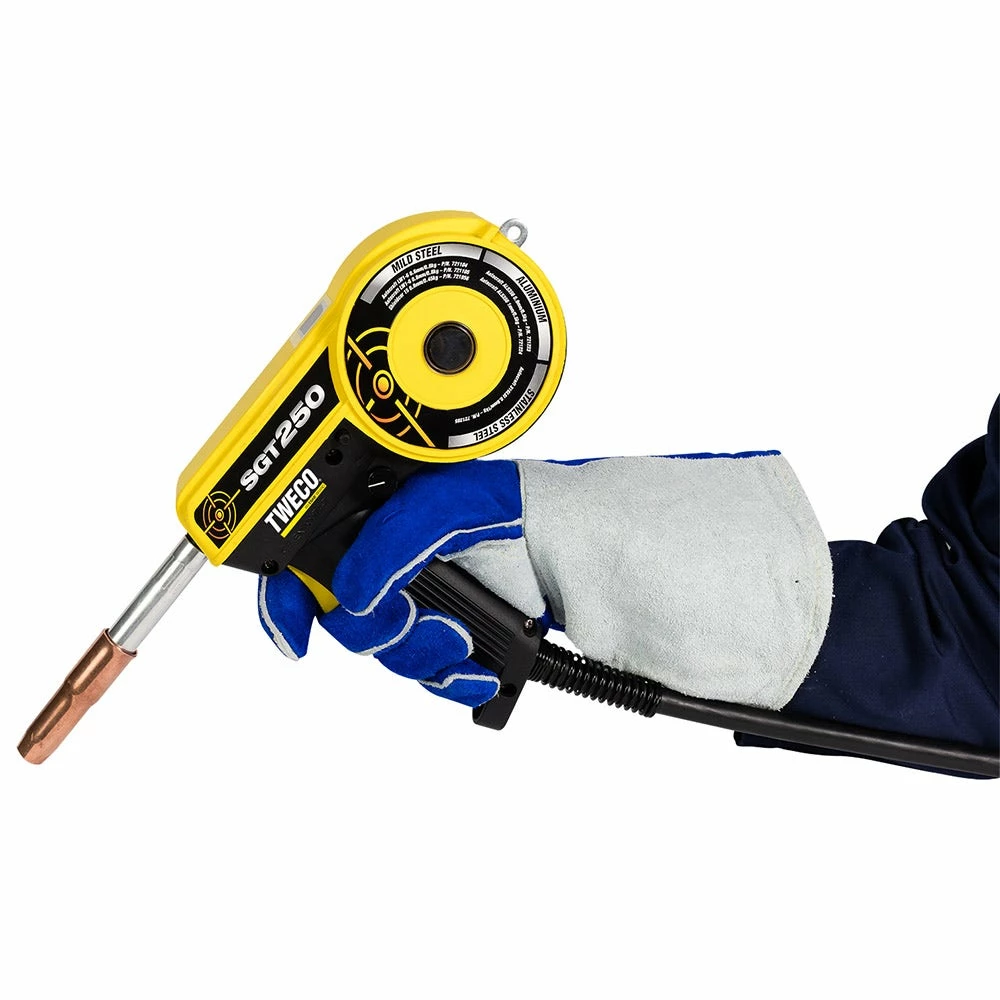

• Pistol grip for higher comfort & precision welding
• Compatible with the WeldSkill 185, Transmig 220i & Rebel 215ic
• Uses Tweco Fusion 150 / 250 front end consumables

Specifications:

• Duty Cycle: Pure Argon: 250A @ 20% | Mixed Gas: 250A @ 20% | CO2: 250A @ 35%

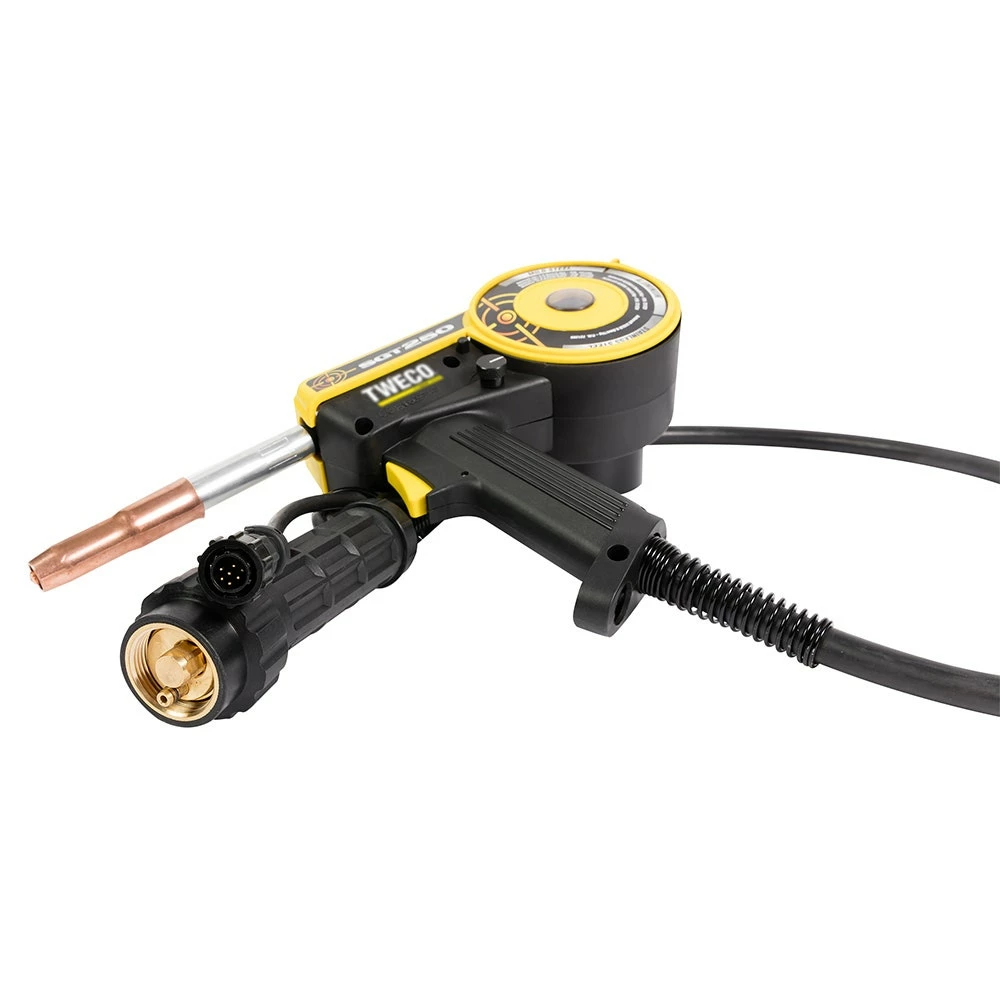

• Connection: Euro connection with 8-pin plug
• Motor Voltage: 24V DC
• Maximum Wire Feed Speed: 16m/min
